NEO water-driven fan MH236 - 28,870 cfm Open Air

NEO WATER-DRIVEN FAN MH236 Water Driven Leader FansNEO WATER-DRIVEN FAN MH236 Water Driven Leader Fans

With a compact water-driven engine and equipped with an integrated misting system, MH236 generates a flow rate of 28,870 cfm Open Air.

  • WATER-DRIVEN
    Powered by a water-driven engine, MH236 does not generate any exhaust gas and requires no power supply.
  • COMPACT
    Compact, MH236 water-driven fan fits easily in vehicle trunks.
  • INTEGRATED MISTING SYSTEM
    MH236 water-driven fan is equipped with a standard misting system for faster and more efficient air cooling.
  • NEO TECHNOLOGY
    NEO technology is the optimal combination of a highly resistant propeller, a high-tech grille and a reinforced monobloc frame to achieve unmatched performance. NEO oval-shaped jet can limit the loss of efficiency related to the shape of the door.

Features

  • NEO WATER-DRIVEN FAN MH236 Water Driven Leader Fans

PRODUCT CHARACTERISTICS

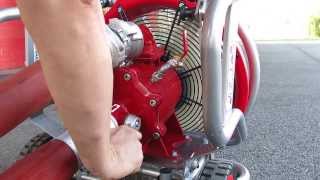

Powered by a water-driven engine with a control valve and a pressure gauge, MH236 water-driven fan is easy to use.

Created to generate no exhaust gas and requiring no electrical power, it can be used anywhere provided it has a properly sized water supply.

Equipped with a standard misting system, this water-driven fan can cool the air quickly. Compact, it fits easily in a vehicle.

Technical Sheet

GENERAL CHARACTERISTICS

OPEN AIR FLOW 28,870 cfm
WEIGHT 72 lbs.
DIMENSIONS W X H X D 21.6″ x 22″ x 20.3″
PROPELLER DIAMETER 16.5″
ENGINE Water-driven motor in aluminium with DSP 65 coupling, cutoff and control valve, and pressure gauge
ENGINE POWER 9 HP
POWER SUPPLY Water under pressure
CONSUMPTION 164 g/min @ 10 bar
ENGINE SUPPLY COUPLINGS Inlet / Outlet: 2” male
NOISE LEVEL 92.8 dB at 3m
VENTILATION TYPE PPV blowing
APPLICATION Single door – houses, small buildings
INTEGRATED MISTER Yes



Downloads

Cutsheet PDF Product ManualPDF
